Deploying a Multi-Environment Application with Argo CD🦑and Helm: A Complete GitOps🔄Guide

GitOps has evolved from a niche concept to the cornerstone of modern Kubernetes delivery. This comprehensive guide details the deployment and management of a multi-environment microservice (Dev, QA, Prod) using Argo CD and Helm, with a sample Leaderboard application as the focal point. It covers the handling of configuration drift, resolution of production issues, and the implementation of the App of Apps pattern for scalable and declarative management.

---

📘 What This Guide Covers

• How Argo CD Applications are created and managed

• Using Helm with environment-specific values

• Detecting and fixing configuration drift

• Understanding and applying the App of Apps pattern

• Resolving real-world production issues

• Following GitOps best practices end-to-end

---

📂 Repository Structure

🔗 GitHub Repository

You can explore the complete implementation of this setup, including Helm charts, environment values, and Argo CD Application manifests here:
GitHub: https://github.com/barbaria888/argo-cd-leaderboard-app

🏅 Author Achievement

This project also contributed to earning Akuity Understanding Gitops with ArgoCD badge

A clear structure is at the heart of good GitOps. The repository is organized into Application manifests and Helm charts:

📦 argo-cd-leaderboard-app/
├── apps/
│   ├── leaderboard-dev.yaml
│   ├── leaderboard-qa.yaml
│   └── leaderboard-prod.yaml
│
└── charts/
    └── leaderboard/
        ├── Chart.yaml
        ├── templates/
        ├── values.yaml
        ├── values-dev.yaml
        ├── values-qa.yaml
        └── values-prod.yaml

Each environment has its own values file, ensuring clean, controlled differences across Dev, QA, and Production.

---

Part 1 — Deploying the First Application

Accessing the Argo CD UI

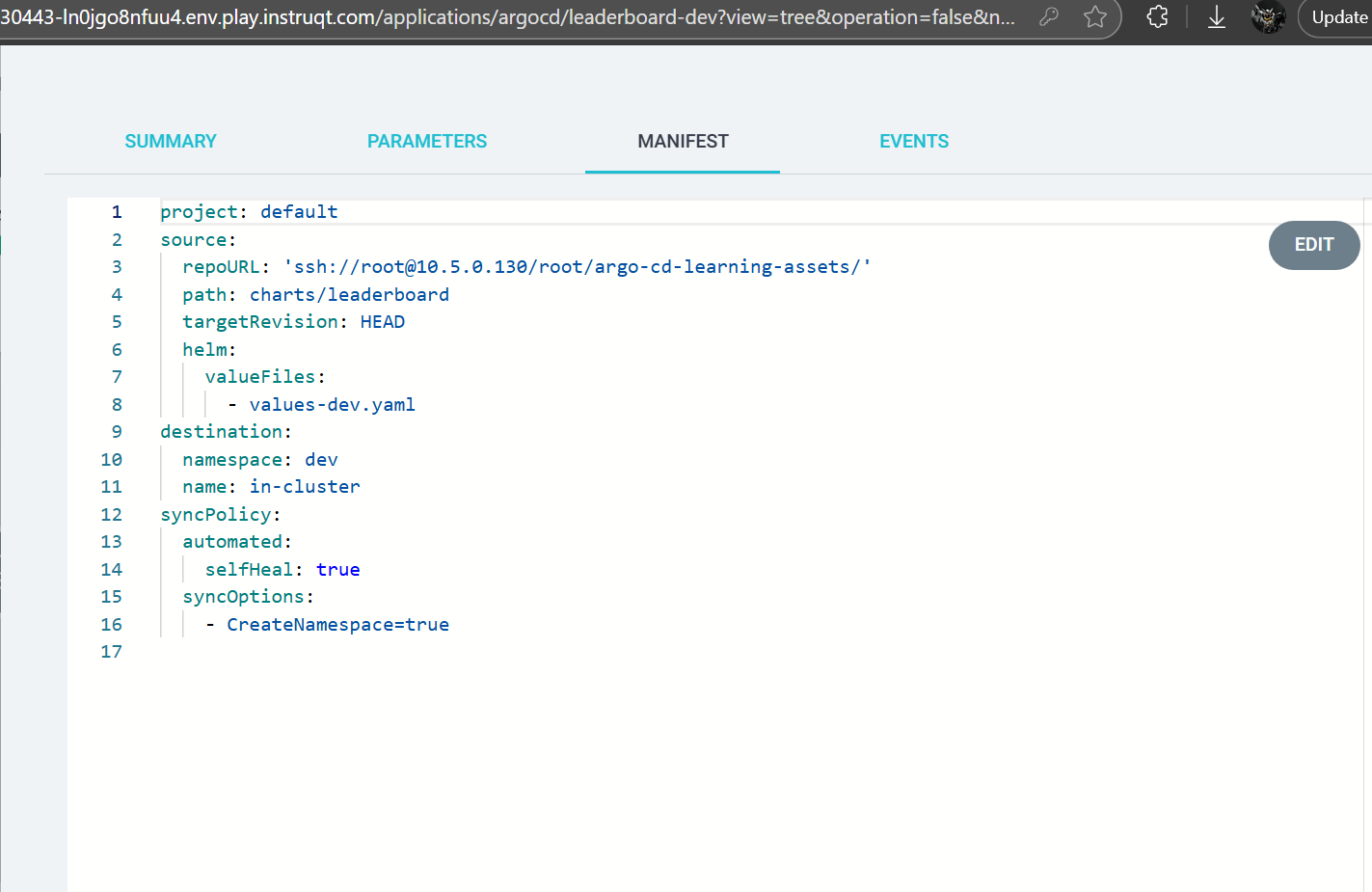

The user logs into Argo CD, selects NEW APP, switches to the YAML editor, and pastes the leaderboard-dev Application manifest.

This manifest declares:

• The repository location

• Chart path

• Values file (values-dev.yaml)

• Destination namespace (dev)

• Sync options such as automated namespace creation

First Sync

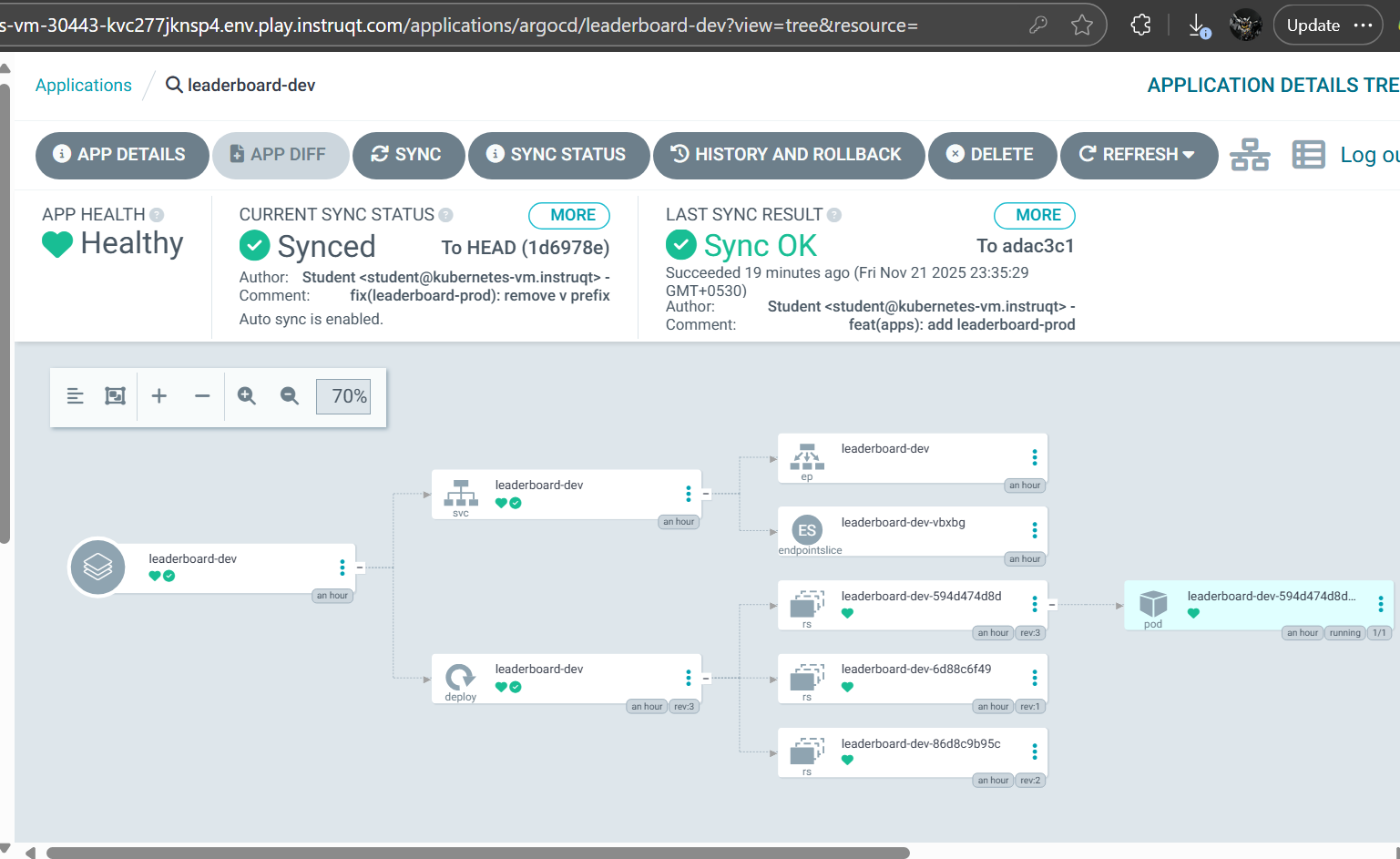

After clicking CREATE, the Application appears as Missing and OutOfSync. A manual SYNC triggers Kubernetes to create Deployments, ReplicaSets, Pods, Services, and Endpoints. Once the Pod becomes Ready, the entire tree turns green.

---

---

Part 2 — Detecting and Understanding Drift

Configuration drift begins the moment Git changes but the cluster does not. When the image tag changes in Git, Argo CD detects the mismatch and marks the Deployment as OutOfSync, represented with a yellow icon.

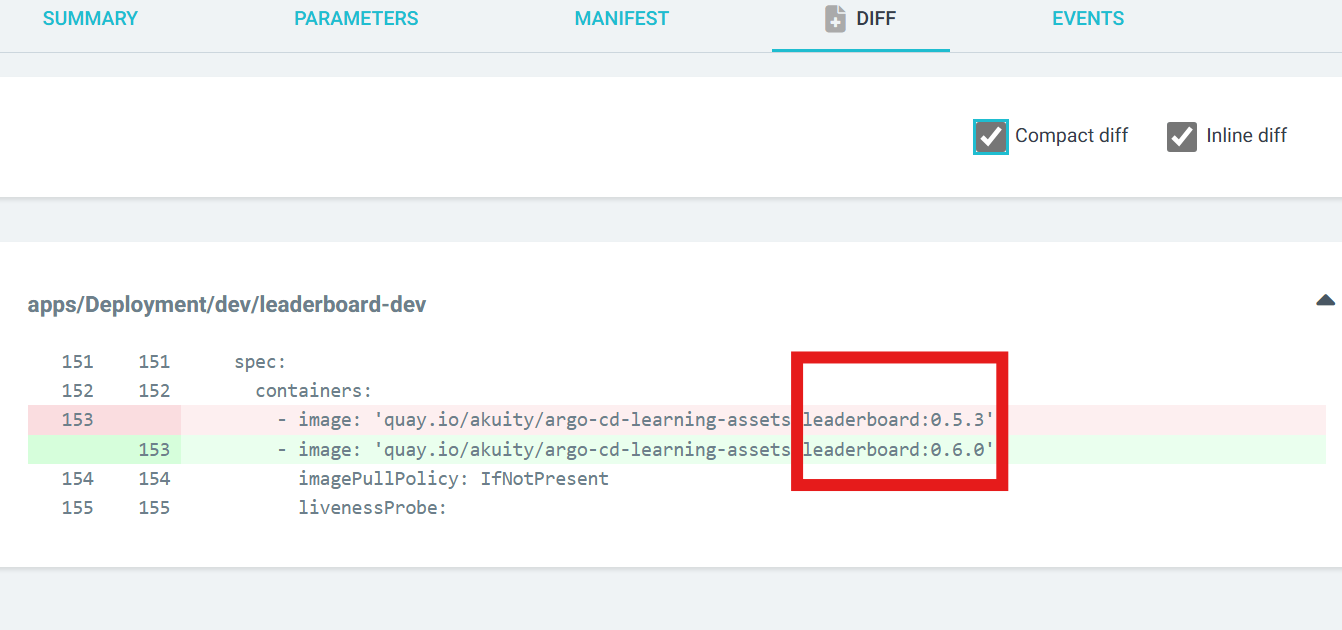

Using the APP DIFF feature, differences become crystal clear—especially when filtering with:

• Compact diff

• Inline diff

This narrow view highlights only what's changed, such as an updated image tag.

---

---

Part 3 — Handling Suspended Deployments

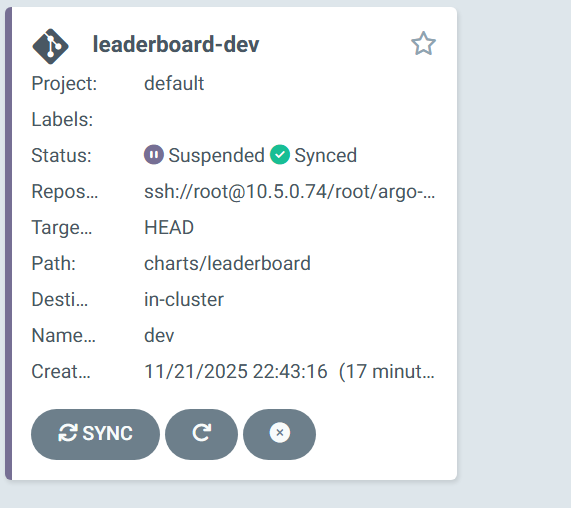

Sometimes manual interventions happen. For example, imagine someone pauses a Deployment rollout directly in the cluster. Argo CD immediately reflects this by showing the Application as Suspended.

To resume:

• Open the Deployment resource

• Click the three-dot menu

• Select Resume

Argo CD continues the rollout using the updated image tag.

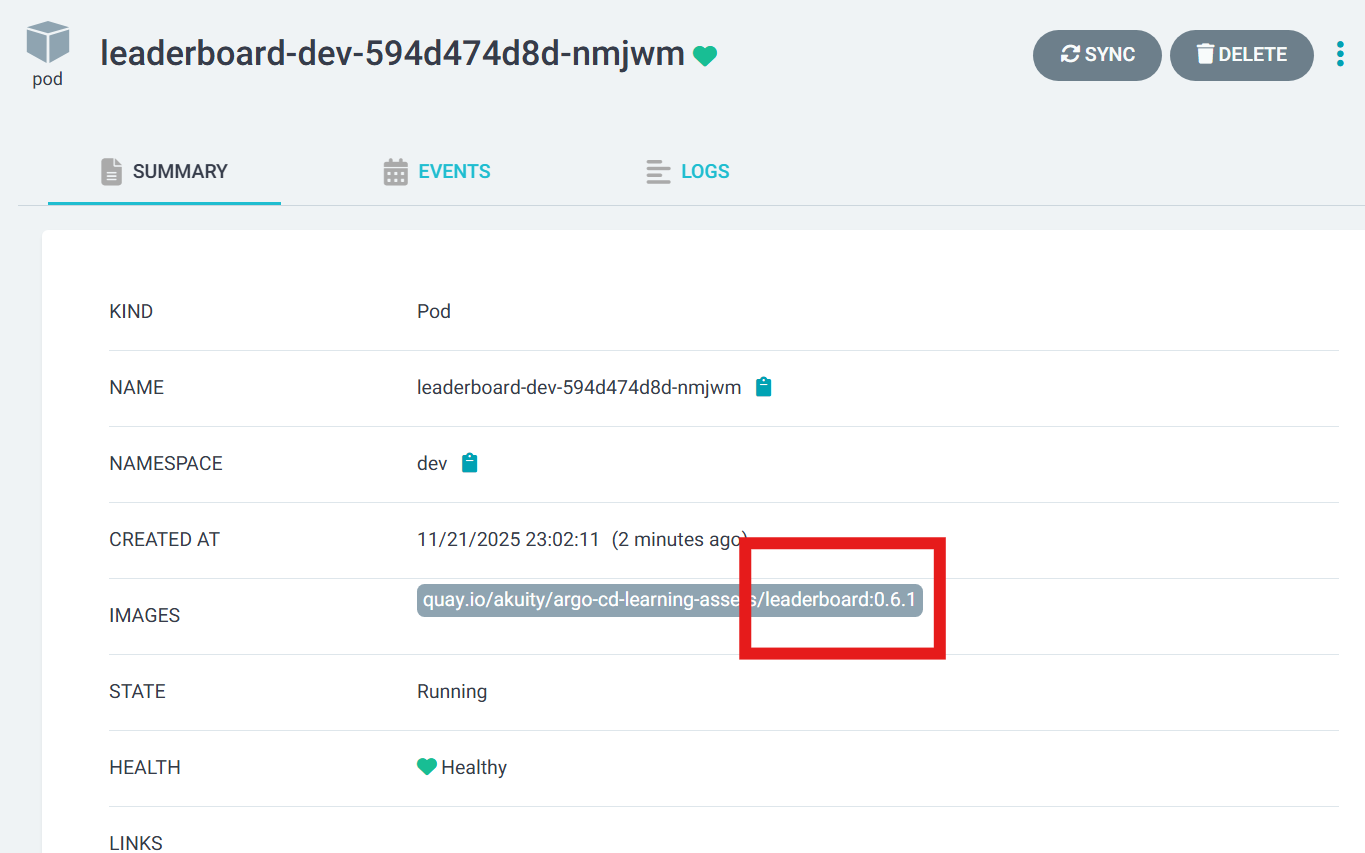

Verification is simple—check the Pod’s SUMMARY tab for the expected image:

quay.io/akuity/.../leaderboard:0.6.1

---

pod_image_change_after_Resume

---

Part 4 — Scaling with the App of Apps Pattern

Creating Applications manually through the UI is useful for beginners but doesn’t scale. In production, Applications must be declared in Git.

The App of Apps pattern solves this elegantly.

A parent Application points to the /apps directory; Argo CD then automatically creates and manages all child Applications.

Key Advantages

• All apps are declared in Git

• Adding new applications is as simple as committing a YAML file

• Autosync ensures hands-free provisioning

• Team onboarding becomes frictionless

Once auto-sync is enabled for the parent app, the entire environment becomes self-managing.

---

Part 5 — Production Troubleshooting: ImagePullBackOff

Production failures are inevitable. One common case:
An image tag is incorrectly specified. For example:

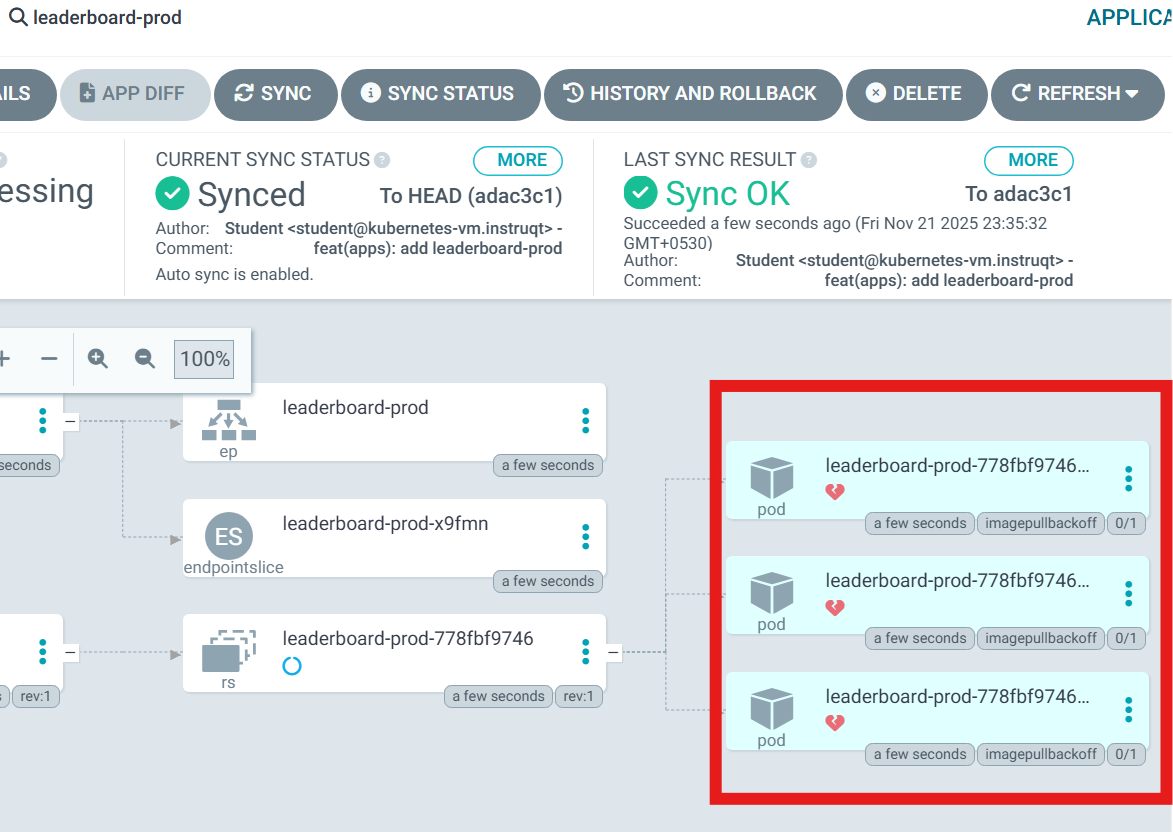

Argo CD shows Pods stuck in ImagePullBackOff.

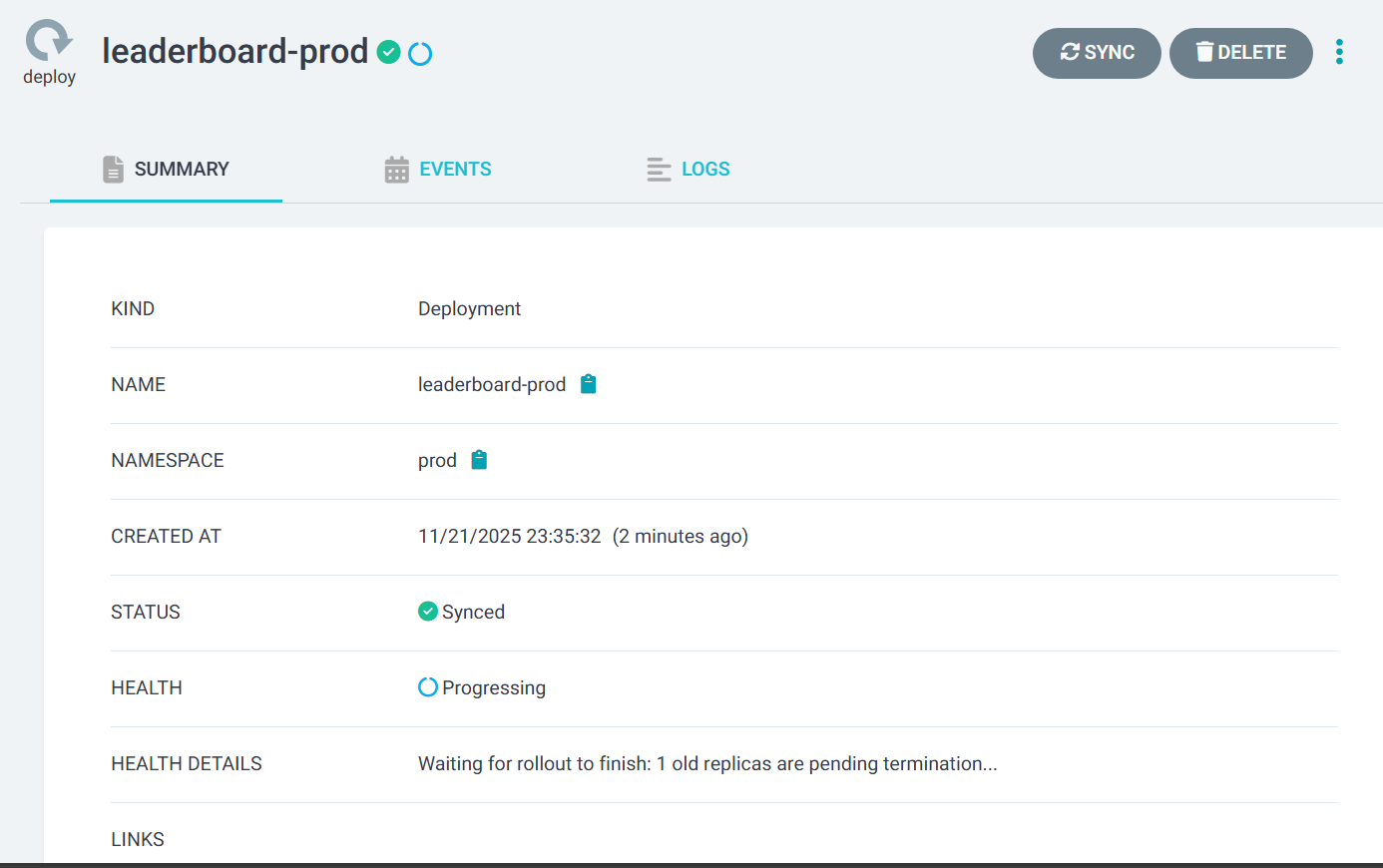

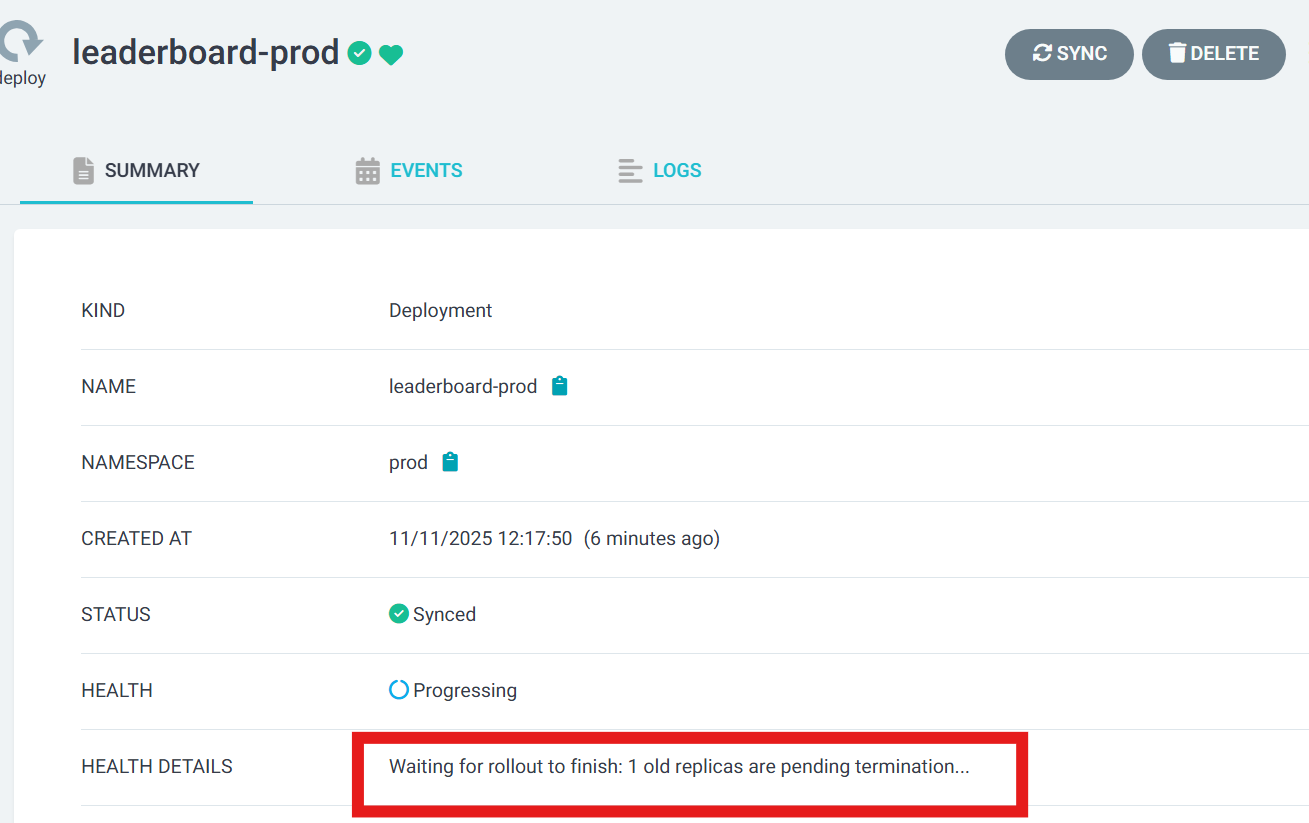

A temporary fix may require editing the live manifest:

• Open the Deployment

• Switch to LIVE MANIFEST

• Remove the v prefix

• Save

    v0.6.1  ❌   (invalid because of the ‘v’ prefix)
    0.6.1   ✔️   (correct)


The cluster recovers immediately.
But Git still contains the wrong value, so Argo CD will continue to detect drift.

Permanent Fix

Update values-prod.yaml:

image:
  tag: "0.6.1"

---

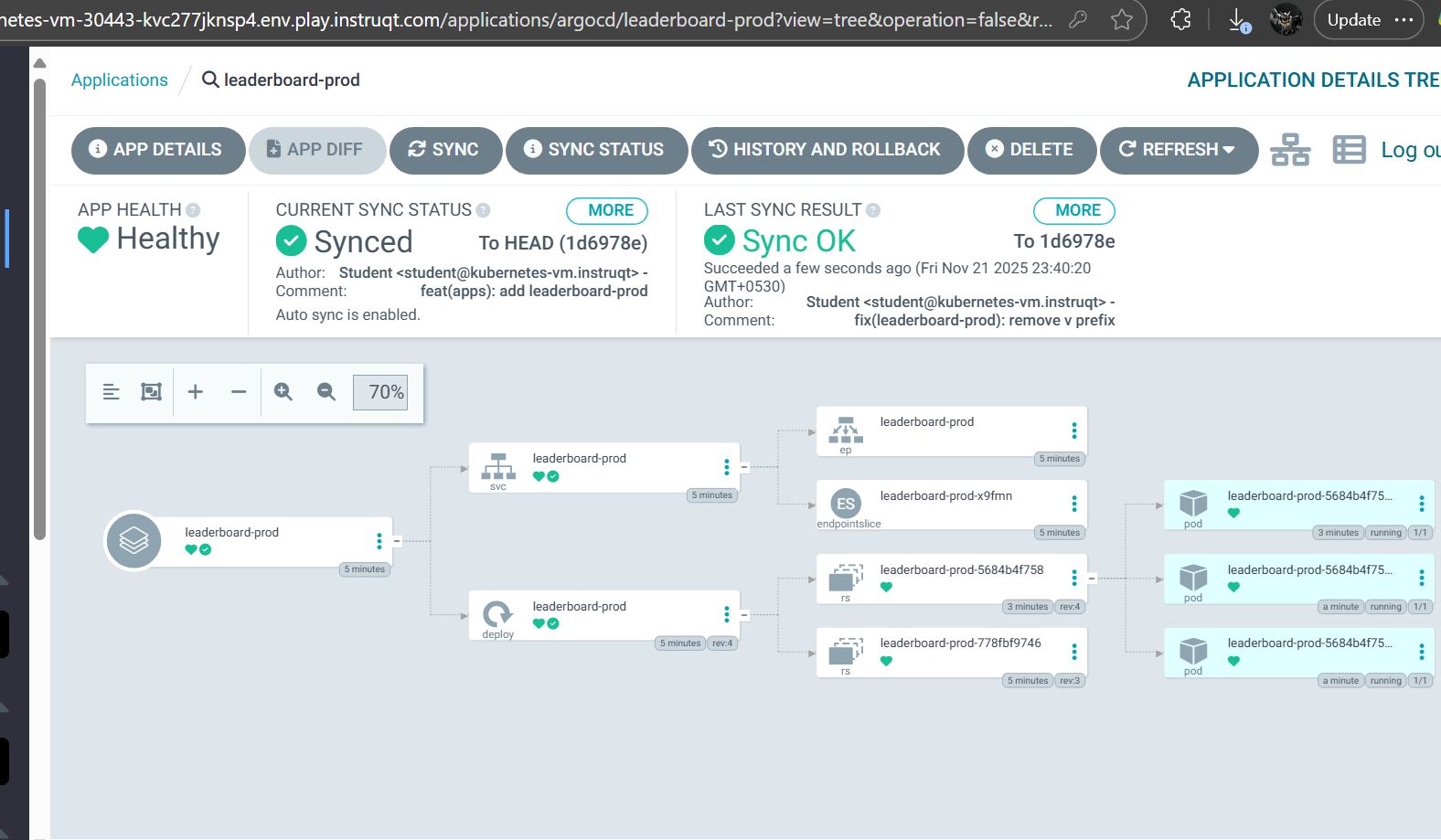

production back up and running

Commit → push → Argo CD syncs → drift resolved.

---

Key Takeaways

1. 🧭 Git is the Source of Truth

All changes must flow through Git — not kubectl.

2. 🛠️ Helm Simplifies Multi-Environment Delivery

Values files keep overrides clean, declarative, and predictable.

3. 🔍 Argo CD Detects Drift Relentlessly

No discrepancy escapes its sync engine.

4. 🗂️ The App-of-Apps Pattern Scales Beautifully

Large fleets of applications become easy to manage.

5. ⚡ Hotfixes Are Temporary

Every manual patch must be followed by the corresponding Git update.

Best Practices Summary

• Commit every change to Git—no exceptions

• Use environment-specific Helm values

• Enable auto-sync for stable environments

• Follow up hotfixes with commits

• Organize manifests cleanly

• Keep Applications declarative

---

Conclusion

This guide demonstrates a complete, real-world GitOps workflow for managing multi-environment Kubernetes applications with Argo CD and Helm. From initial deployment to drift detection, from suspended rollouts to production fire-fighting, every step reinforces one truth:

GitOps isn’t just a methodology—it’s a discipline.
